MIXA20WB1200TED | Littelfuse

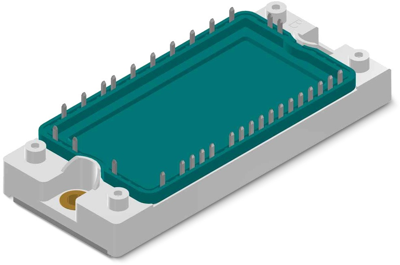

Converter brake inverter, 1600 V, 28 A, E2-Pack, Littelfuse MIXA20WB1200TED
Order No.: 74P0959
EAN: 4099891778248
MPN:
MIXA20WB1200TED
Unit Price (€ / pc.)
69.2580 € *
Available: 0 pcs.
Leadtime: 62 Weeks **
IGBT module, MIXA20WB1200TED, LITTELFUSE
XPT IGBT has an easy paralleling due to the positive temperature coefficient of the on-state voltage. It has a rugged XPT design (Xtreme light Punch Through) that results in a short circuit rating of 10 µsec, very low gate charge, and low EMI.
Features
- Thin wafer technology combined with the XPT design results in a competitive low VCE(sat)
- Fast and soft reverse recovery
- Low operating forward voltage
- Insulated copper base plate
- Soldering pins for PCB mounting
- Temperature sense included
Applications
- AC motor drives
- Solar inverter
- Medical equipment
- Uninterruptible power supplies (UPS)
- Air-conditioning systems
- Welding equipment
- Switch-mode and resonant-mode power supplies
Technical specifications
| Ausführung | 3-Phasen-Wechselrichter | |
| Gehäuse | E2-Pack | |
| max. Spannung | 1600 V | |
| max. Strom | 28 A | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -40 °C | |
| Montage | Chassisbefestigung | |
| Sättigungsspannung | 1.8 V | |
| Schaltverlust b. Ausschalten Eoff typ. | 1.7 J | |
| Schaltverlust b. Einschalten Eon typ. | 1.55 J | |
| Verlustleistung VA (AC) | 100 W |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
