Phase leg IGBT, 1200 V, 250 A, Simbus F, Littelfuse MIXA225PF1200TSF
Order No.: 74P0960
EAN: 4099891778255
MPN:
MIXA225PF1200TSF
Unit Price (€ / pc.)
131.7211 € *
Available: 0 pcs.
Leadtime: 95 Weeks **

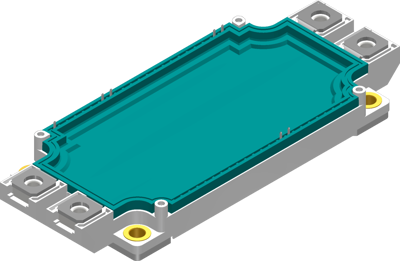

IGBT module, MIXA225PF1200TSF, LITTELFUSE
The phase leg XPT IGBT has an easy paralleling due to the positive temperature coefficient of the on-state voltage. It has a rugged XPT design (Xtreme light Punch Through) that results in a short circuit rating of 10 µsec, very low gate charge, and low EMI.
Features
- Thin wafer technology combined with the XPT design results in a competitive low VCE(sat)
- Fast and soft reverse recovery
- Low operating forward voltage
- Industry standard outline
- RoHS compliant
- Soldering pins for PCB mounting
- Base plate: copper internally DCB isolated
- Advanced power cycling
Applications
- AC motor drives
- Solar inverter
- Medical equipment
- Uninterruptible power supplies (UPS)
- Air-conditioning systems
- Welding equipment
- Switch-mode and resonant-mode power supplies
Technical specifications
| Ausführung | Halbbrücke | |
| Gehäuse | Simbus F | |
| max. Spannung | 1200 V | |
| max. Strom | 250 A | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -40 °C | |
| Montage | Chassisbefestigung | |
| Sättigungsspannung | 1.8 V | |
| Schaltverlust b. Ausschalten Eoff typ. | 27 J | |
| Schaltverlust b. Einschalten Eon typ. | 20 J | |
| Verlustleistung VA (AC) | 1100 W |
