MIXA30WB1200TED | Littelfuse

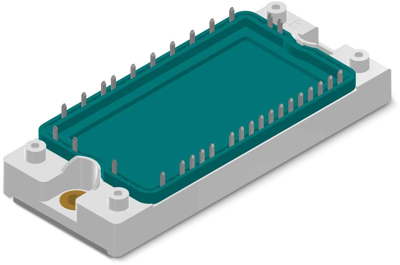

Converter brake inverter, 1600 V, 43 A, E2-Pack, Littelfuse MIXA30WB1200TED
Order No.: 74P0963
EAN: 4099891778286
MPN:
MIXA30WB1200TED
Unit Price (€ / pc.)
75.5174 € *
Available: 0 pcs.
Leadtime: 62 Weeks **
IGBT module, MIXA30WB1200TED, LITTELFUSE
XPT IGBT has an easy paralleling due to the positive temperature coefficient of the on-state voltage. It has a rugged XPT design (Xtreme light Punch Through) that results in a short circuit rating of 10 µsec, very low gate charge, and low EMI.
Features
- Thin wafer technology combined with the XPT design results in a competitive low VCE(sat)
- Fast and soft reverse recovery
- Low operating forward voltage
- Insulated copper base plate
- Soldering pins for PCB mounting
- Temperature sense included
Applications
- AC motor drives
- Solar inverter
- Medical equipment
- Uninterruptible power supplies (UPS)
- Air-conditioning systems
- Welding equipment
- Switch-mode and resonant-mode power supplies
Technical specifications
| Version | 3 phase inverter | |
| Enclosure | E2-Pack | |
| max. Voltage | 1600 V | |
| Max. current | 43 A | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Assembly | chassis mounting | |
| Saturation voltage | 1.8 V | |
| Switching loss b. switch off Eoff typ. | 3 J | |
| Switching loss at switch-on Eon typ. | 2.5 J | |
| Power dissipation | 150 W |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
