Converter brake inverter, 1600 V, 120 A, E3-Pack, Littelfuse MIXA80WB1200TEH

Order No.: 74P0974
EAN: 4099891778392
MPN:
MIXA80WB1200TEH
Littelfuse
MIXA80WB1200TEH Littelfuse IGBTs

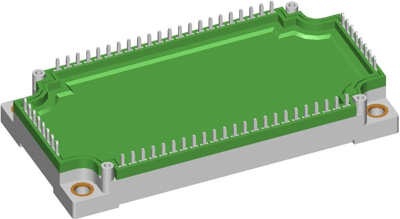

Image may differ
Unit Price (€ / pc.)
123.2721 € *
Available: 0 pcs.
Leadtime: 62 Weeks **
Total Price:
123.27 € *
*incl. VAT plus shipping costs
**Subject to prior sale
5 pcs.
123.2721 €

IGBT module, MIXA80WB1200TEH, LITTELFUSE

XPT IGBT has an easy paralleling due to the positive temperature coefficient of the on-state voltage. It has a rugged XPT design (Xtreme light Punch Through) that results in a short circuit rating of 10 µsec, very low gate charge, square RBSOA @ 3x IC, and low EMI.

Features

  • Thin wafer technology combined with the XPT design results in a competitive low VCE(sat)
  • Fast and soft reverse recovery
  • Low operating forward voltage
  • Insulated copper base plate
  • Soldering pins for PCB mounting
  • Temperature sense included

Applications

  • AC motor drives
  • Solar inverter
  • Medical equipment
  • Uninterruptible power supplies (UPS)
  • Air-conditioning systems
  • Welding equipment
  • Switch-mode and resonant-mode power supplies
Technical specifications
Version 3 phase inverter
Enclosure E3-Pack
max. Voltage 1600 V
Max. current 120 A
max. operating temperature 125 °C
min. operating temperature -40 °C
Assembly chassis mounting
Saturation voltage 1.8 V
Switching loss b. switch off Eoff typ. 8.3 J
Switching loss at switch-on Eon typ. 6.8 J
Power dissipation 390 W
Logistics
Country of origin PH
Customs tariff number 85411000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
