0251.062HAT1L | Littelfuse
Microfuses 7.11 x 2.8 mm, 62 mA, FF, 125 V (DC), 125 V (AC), 300 A breaking capacity, 0251.062HAT1L
Unit Price (€ / pc.)
6.3903 € *
Available: 23 pcs.
Leadtime: 8 Weeks **
Total Price:
6.39 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3903 €
10 pcs.
4.5577 €
100 pcs.
3.9032 €
500 pcs.
3.3915 €
1000 pcs.
3.0821 €
*incl. VAT plus shipping costs
**Subject to prior sale

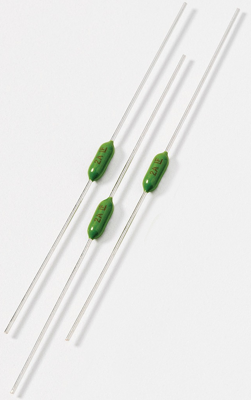

Fuse, 0251.062HAT1L, Littelfuse
The 0251.062HAT1L is a very fast-acting fuse is designed to meet an extensive array of performance characteristics in a space-saving subminiature package.
Features
- Very fast-acting
- Small size
- Wide current rating
- Halogen-free available
- Wide operating temperature range
- Low temperature re-rating
Technical specifications
| Version | microfuses | |
| Tripping characteristics | FF | |
| Breaking capacity | 300 A | |
| Design | 7.11 x 2.8 mm | |
| diameter | 2.8 mm | |
| Enclosure | ceramic tube | |
| Length | 7.11 mm | |
| Rated voltage (AC) | 125 V | |
| Rated voltage (DC) | 125 V | |
| Rated current | 62 mA |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85361010 |
| Original Packaging | Ammopack with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
