0313025.HXP | Littelfuse
Microfuses 6.3 x 32 mm, 25 A, T, 32 V (AC), 300 A breaking capacity, 0313025.HXP
Unit Price (€ / pc.)
0.6783 € *
Available: 0 pcs.
Leadtime: 11 Weeks **

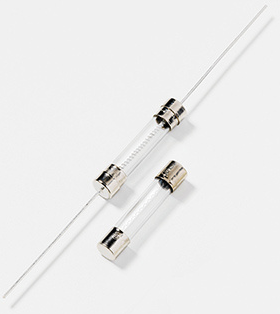

Slo-Blo fuse, 0313025.HXP, Littelfuse
The 3AG Slo-Blo fuse solves a broad range of application requirements while offering reliable performance and costeffective circuit protection. The fuse catalog number with the suffix “ID” instantly identifies itself upon opening by showing a discoloration of its glass body. Guesswork and time consuming circuit testing are eliminated. This unique design offers the same quality performance characteristics as the standard 3AG Slo-Blo Fuse design.
Technical specifications
| Version | microfuses | |
| Tripping characteristics | T | |
| Breaking capacity | 300 A | |
| Design | 6.3 x 32 mm | |
| diameter | 6.35 mm | |
| Enclosure | glass tube | |
| Length | 31.75 mm | |
| Rated voltage (AC) | 32 V | |
| Rated current | 25 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85361050 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
