0313030.VXP | Littelfuse
Microfuse 6.3 x 32 mm, 30 A, T, 32 V (AC), 300 A breaking capacity, 0313030.VXP
Unit Price (€ / pc.)
6.0928 € *
Available: 0 pcs.
Leadtime: 15 Weeks **

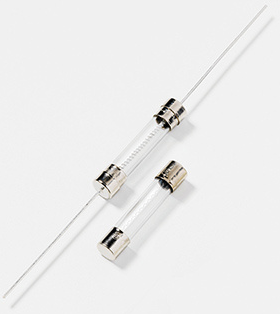

Slo-Blo fuse, 0313030.VXP, Littelfuse
The 3AG Slo-Blo fuse solves a broad range of application requirements while offering reliable performance and costeffective circuit protection. The fuse catalog number with the suffix “ID” instantly identifies itself upon opening by showing a discoloration of its glass body. Guesswork and time consuming circuit testing are eliminated. This unique design offers the same quality performance characteristics as the standard 3AG Slo-Blo Fuse design.
Technical specifications
| Ausführung | Feinsicherung | |
| Auslösecharakteristik | T | |
| Ausschaltvermögen | 300 A | |
| Bauform | 6,3 x 32 mm | |
| Durchmesser | 6.35 mm | |
| Gehäuse | Glasrohr | |
| Länge | 31.75 mm | |
| Nennspannung (AC) | 32 V | |
| Nennstrom | 30 A |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85361050 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
