0437002.WRA | Littelfuse
SMD-Fuse SMD 1206, 2 A, F, 63 V (DC), 63 V (AC), 50 A breaking capacity, 0437002.WRA
Unit Price (€ / pc.)
1.1067 € *
Available: 0 pcs.
Leadtime: 10 Weeks **

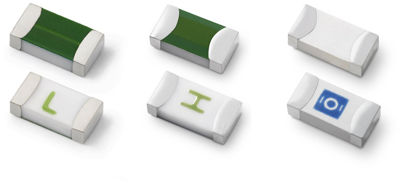

Fuse, 0437002.WRA, LITTELFUSE
The fuse is specifically tested to cater to the secondary circuit protection needs of compact autoelectronics applications. The general design ensures excellent temperature stability and performance reliability. The high I²t values ensure high inrush current withstand capability.
Features
- 100% lead-free, RoHS compliant and halogen-free
- Fast response to faulty current to ensure over-current protection for sensitive electronic components
- AEC-Q200 qualified
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | F | |
| Ausschaltvermögen | 50 A | |
| Bauform | SMD 1206 | |
| Breite | 1.63 mm | |
| Gehäuse | SMD | |
| Höhe | 0.84 mm | |
| Länge | 3.2 mm | |
| Nennspannung (AC) | 63 V | |
| Nennspannung (DC) | 63 V | |
| Nennstrom | 2 A |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85361010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
