0438006.WRA | Littelfuse

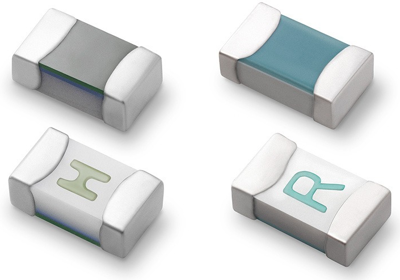

SMD-Fuse SMD 0603, 6 A, F, 24 V (DC), 12 V (AC), 50 A breaking capacity, 0438006.WRA
Unit Price (€ / pc.)
1.1067 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Fuse, 0438006.WRA, LITTELFUSE
The fuse is specifically tested to cater to the secondary circuit protection needs of compact autoelectronics applications. The general design ensures excellent temperature stability and performance reliability. The high I²t values ensure high inrush current withstand capability.
Features
- 100% lead-free, RoHS compliant and halogen-free
- Suitable for both leaded and lead-free reflow/wave soldering
Technical specifications
| Version | SMD-Fuse | |
| Tripping characteristics | F | |
| Breaking capacity | 50 A | |
| Design | SMD 0603 | |
| Width | 0.85 mm | |
| Enclosure | SMD | |
| Height | 0.51 mm | |
| Length | 1.58 mm | |
| Rated voltage (AC) | 12 V | |
| Rated voltage (DC) | 24 V | |
| Rated current | 6 A |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85361010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
