04381.25WR | Littelfuse
SMD-Fuse SMD 0603, 1.25 A, F, 32 V (DC), 32 V (AC), 50 A breaking capacity, 04381.25WR
Unit Price (€ / pc.)
0.9996 € *
Available: 0 pcs.
Leadtime: 9 Weeks **

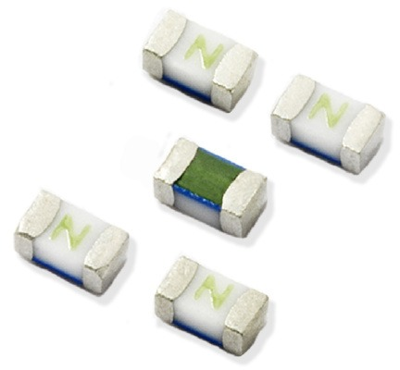

Fuse, 04381.25WR, LITTELFUSE
This 100% lead-free, RoHS compliant and halogen-free fuse is designed specifically to provide overcurrent protection to circuits that operate under high working ambient temperature up to 150 ºC. The general design ensures excellent temperature stability and performance reliability. The high I²t values ensures high inrush current withstand capability.
Features
- 100% lead-free, RoHS compliant and halogen-free
- Suitable for both leaded and lead-free reflow/wave soldering
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | F | |
| Ausschaltvermögen | 50 A | |
| Bauform | SMD 0603 | |
| Breite | 0.83 mm | |
| Gehäuse | SMD | |
| Höhe | 0.52 mm | |
| Länge | 1.58 mm | |
| Nennspannung (AC) | 32 V | |
| Nennspannung (DC) | 32 V | |
| Nennstrom | 1.25 A |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85361010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
