0441004.WR | Littelfuse

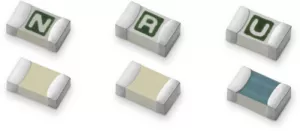

SMD-Fuse SMD 0603, 4 A, F, 32 V (DC), 50 A breaking capacity, 0441004.WR
Unit Price (€ / pc.)
0.9996 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Fuse, 0441004.WR, LITTELFUSE
This 100% lead-free, RoHS compliant and halogen-free fuse has been designed specifically to provide over current protection to circuits that see high working ambient temperatures up to 150ºC and high inrush currents. The fuse design ensures excellent temperature stability and performance reliability. This high I²t fuse is designed to have ultra-high inrush current withstand capability to avoid nuisance fuse open.
Features
- 100% lead-free, RoHS compliant and halogen-free
- Suitable for both leaded and lead-free reflow/wave soldering
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | F | |
| Ausschaltvermögen | 50 A | |
| Bauform | SMD 0603 | |
| Breite | 0.85 mm | |
| Gehäuse | SMD | |
| Höhe | 0.51 mm | |
| Länge | 1.58 mm | |
| Nennspannung (DC) | 32 V | |
| Nennstrom | 4 A |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85361010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
