044801.5MR | Littelfuse
SMD-Fuse 6.1 x 2.69 mm, 1.5 A, FF, 125 V (AC), 50 A breaking capacity, 044801.5MR
Unit Price (€ / pc.)
1.1067 € *
Available: 0 pcs.
Leadtime: 11 Weeks **

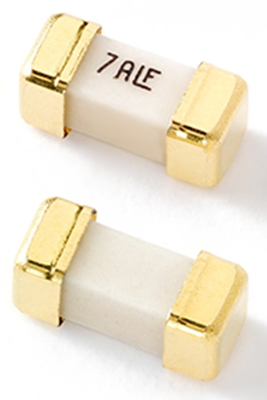

SMD-Fuse, 044801.5MR, Littelfuse
The 044801.5MR is a SMT fuse that is very small and square surface mount fuse that is RoHS-compatible, halogen-free and 100 % lead-free.
Features
- Wide operating temperature range
- Very fast-acting
- Wide range of current
- RoHS-compatible, leadfree and halogen free
Applications
- LCD backlight inverter
- Wireless basestation
- Office automation equipment
- Battery charging circuit protection
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | FF | |
| Ausschaltvermögen | 50 A | |
| Bauform | 6,1 x 2,69 mm | |
| Breite | 2.69 mm | |
| Gehäuse | SMD | |
| Höhe | 2.69 mm | |
| Länge | 6.1 mm | |
| Nennspannung (AC) | 125 V | |
| Nennstrom | 1.5 A |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85361010 |
| Originalverpackung | Rolle mit 1.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
