0448010.MR | Littelfuse
SMD-Fuse 6.1 x 2.69 mm, 10 A, FF, 85 V (AC), 35 A breaking capacity, 0448010.MR
Unit Price (€ / pc.)
1.7731 € *
Available: 0 pcs.
Leadtime: 9 Weeks **

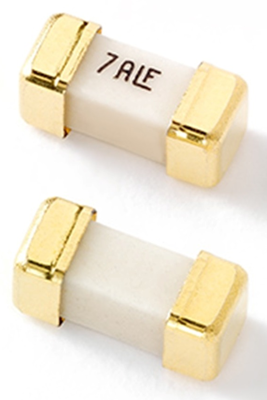

SMD-Fuse, 0448010.MR, Littelfuse
The 0448010.MR is a SMT fuse that is very small and square surface mount fuse that is RoHS-compatible, halogen-free and 100 % lead-free.
Features
- Wide operating temperature range
- Very fast-acting
- Wide range of current
- RoHS-compatible, leadfree and halogen free
Applications
- LCD backlight inverter
- Wireless basestation
- Office automation equipment
- Battery charging circuit protection
Technical specifications
| Version | SMD-Fuse | |
| Tripping characteristics | FF | |
| Breaking capacity | 35 A | |
| Design | 6.1 x 2.69 mm | |
| Width | 2.69 mm | |
| Enclosure | SMD | |
| Height | 2.69 mm | |
| Length | 6.1 mm | |
| Rated voltage (AC) | 85 V | |
| Rated current | 10 A |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85361010 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
