0449.500MR | Littelfuse
SMD-Fuse 6.1 x 2.69 mm, 500 mA, T, 125 V (DC), 125 V (AC), 50 A breaking capacity, 0449.500MR
Unit Price (€ / pc.)
1.5113 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

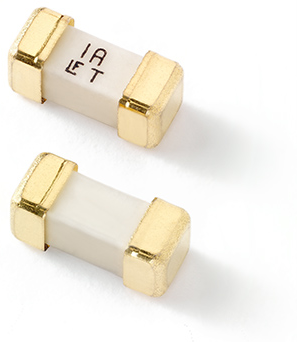

SMD-Fuse, 0449.500MR, Littelfuse
The 0449.500MR is a fuse that his design has enhanced inrush withstand characteristics over the Fast-Acting fuse.
Features
- Wide operating temperature range
- Wide range of current
- Low temperature rating
- RoHS-compatible, leadfree and halogen free
Applications
- LCD backlight inverter
- Wireless basestation
- Office automation equipment
- Battery charging circuit protection
Technical specifications
| Version | SMD-Fuse | |
| Tripping characteristics | T | |
| Breaking capacity | 50 A | |
| Design | 6.1 x 2.69 mm | |
| Width | 2.69 mm | |
| Enclosure | SMD | |
| Height | 2.69 mm | |
| Length | 6.1 mm | |
| Rated voltage (AC) | 125 V | |
| Rated voltage (DC) | 125 V | |
| Rated current | 500 mA |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85361010 |
| Original Packaging | Reel with 1,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
