0453020.MR | Littelfuse
SMD-Fuse 6.1 x 2.69 mm, 20 A, FF, 65 V (DC), 65 V (AC), 150 A breaking capacity, 0453020.MR
Unit Price (€ / pc.)
1.5708 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Fuse, 0453020.MR, LITTELFUSE

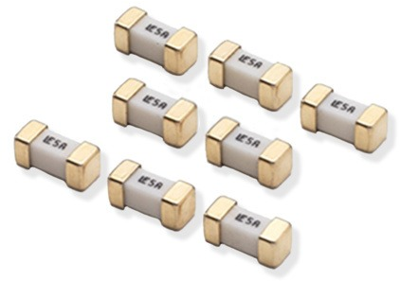

A very small, wire-in-air (WIA) square-shaped surface mount fuse that was designed for secondary side circuit over-current protection applications. These fuses are designed for PCB using surface-mount technology.
Features
- Very fast-acting
- Wide operating temperature range
- RoHS compliant and halogen-free
Applications
- Notebook PC
- LCD/PDP TV
- LCD monitor
- LCD/PDP panel
- LCD backlight inverter
- Portable DVD player
- Power supply
- Networking
- PC server
- Cooling fan system
- Storage system
- Telecom system
- Wireless basestation
- White goods
- Game console
- Office automation equipment
- Battery charging circuit protection
- Industrial equipment
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | FF | |
| Ausschaltvermögen | 150 A | |
| Bauform | 6,1 x 2,69 mm | |
| Breite | 2.69 mm | |
| Gehäuse | SMD | |
| Höhe | 2.69 mm | |
| Länge | 6.1 mm | |
| Nennspannung (AC) | 65 V | |
| Nennspannung (DC) | 65 V | |
| Nennstrom | 20 A |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85361050 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
