0456040.DRSD | Littelfuse

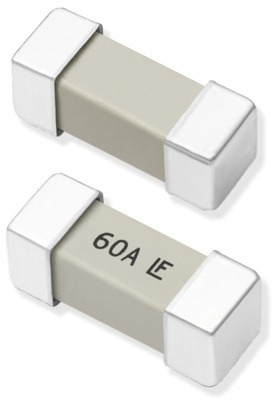

SMD-Fuse 4.5 X 12.20 mm, 40 A, F, 75 V (DC), 125 V (AC), 100 A breaking capacity, 0456040.DRSD
Unit Price (€ / pc.)
3.7723 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Fuse, 0456040.DRSD, LITTELFUSE
A small square surface mount fuse that is designed to support higher current requirements of various applications.
Features
- Very low cold resistance, temperature rise, and voltage drop
- High inrush/surge current withstand capability
- Single fuse solution for high current application
- Enhances power efficiency
- Compatible with high volume assembly requirements
Applications
- Voltage regulator module for PC server
- Cooling fan system for PC server
- Storage system power
- Basestation power supply
- Power tools
Technical specifications
| Version | SMD-Fuse | |
| Tripping characteristics | F | |
| Breaking capacity | 100 A | |
| Design | 4.5 X 12.20 mm | |
| Width | 4.5 mm | |
| Enclosure | SMD | |
| Height | 4.5 mm | |
| Length | 12.2 mm | |
| Rated voltage (AC) | 125 V | |
| Rated voltage (DC) | 75 V | |
| Rated current | 40 A |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85361090 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
