04581.25DR | Littelfuse

SMD-Fuse SMD 1206, 1.25 A, FF, 75 V (DC), 48 V (AC), 50 A breaking capacity, 04581.25DR

Order No.: 75P0102
EAN: 4099891869670
MPN:
04581.25DR
Series: 458
04581.25DR Littelfuse Micro Fuses

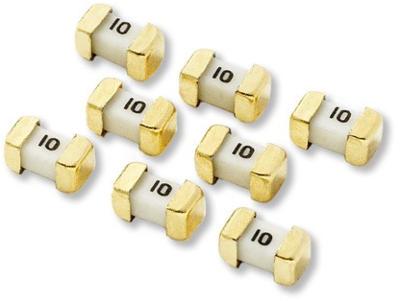

Image may differ
Unit Price (€ / pc.)
1.2257 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
1,838.55 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1500 pcs.
1.2257 €

Fuse, 04581.25DR, LITTELFUSE

An ultra-small, square surface mount fuse designed to support a variety of space-constrained overcurrent protection applications with a 1206-size footprint.

Features

  • Fully compatible with lead free soldering profiles
  • RoHS compliant and halogen-free

Applications

  • Notebook PC
  • LCD backlight inverter
  • LCD panel
  • DC/DC converter
  • Battery pack
  • Car navigation system
  • Network equipment
  • Telecom equipment
  • Electronic signage
  • Portable consumer electronics
Technical specifications
Ausführung SMD-Sicherung
Auslösecharakteristik FF
Ausschaltvermögen 50 A
Bauform SMD 1206
Breite 1.58 mm
Gehäuse SMD
Höhe 1.58 mm
Länge 3.18 mm
Nennspannung (AC) 48 V
Nennspannung (DC) 75 V
Nennstrom 1.25 A
Logistics
Ursprungsland PH
Zolltarifnummer 85361010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
