0459001.UR | Littelfuse
SMD-Fuse 4.32 x 7.24 mm, 1 A, FF, 125 V (DC), 125 V (AC), 50 A breaking capacity, 0459001.UR
Unit Price (€ / pc.)
1.0591 € *
Available: 0 pcs.
Leadtime: 11 Weeks **

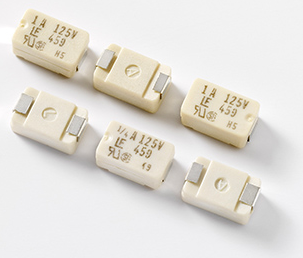

SMD-Fuse, 0459001.UR, Littelfuse
The 0459001.UR is a very fast-acting SMT Fuse and it is based on Littelfuse technology, though offered in a surface mount package.
Features
- Wide operating temperature range
- Wide range of current
- Very fast-acting
- RoHS-compatible
Applications
- Network equipment
- Wireless basestation
- Telecom equipment
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | FF | |
| Ausschaltvermögen | 50 A | |
| Bauform | 4,32 x 7,24 mm | |
| Breite | 4.32 mm | |
| Gehäuse | SMD | |
| Höhe | 3.05 mm | |
| Länge | 7.24 mm | |
| Nennspannung (AC) | 125 V | |
| Nennspannung (DC) | 125 V | |
| Nennstrom | 1 A |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85361010 |
| Originalverpackung | Rolle mit 500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
