0467.375NR | Littelfuse
SMD-Fuse SMD 0603, 375 mA, FF, 32 V (DC), 32 V (AC), 50 A breaking capacity, 0467.375NR
Unit Price (€ / pc.)
0.8568 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Fuse, 0467.375NR, LITTELFUSE

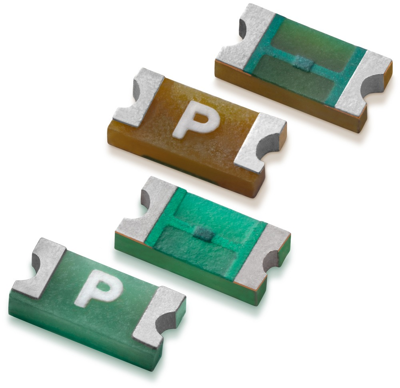

The fast-acting surface mount fuse (SMF) is an ultra-small (0603-size) thin-film device designed for secondary protection of circuits used in space-constrained applications such as hand-held portable electronic devices. It is 100% lead-free and meets the requirements of the RoHS directive.
Features
- Product is compatible with lead-free solders and higher temperature profiles
- High performance materials provide improved performance in elevated ambient temperature applications
- Low profile for height sensitive applications
- Flat top surface for pick-and-place operations
- Element-covering material is resistant to industry standard cleaning operations
Applications
- Cell phones
- Battery pack
- Digital cameras
- DVD players
- Hard disk drives
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | FF | |
| Ausschaltvermögen | 50 A | |
| Bauform | SMD 0603 | |
| Breite | 0.81 mm | |
| Gehäuse | SMD | |
| Höhe | 0.33 mm | |
| Länge | 1.6 mm | |
| Nennspannung (AC) | 32 V | |
| Nennspannung (DC) | 32 V | |
| Nennstrom | 375 mA |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85361010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
