0501020.WR | Littelfuse

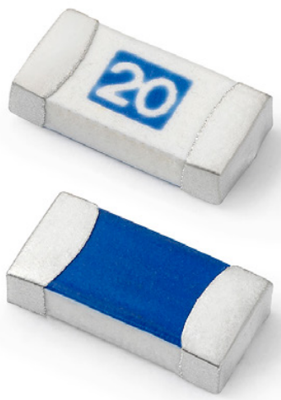

SMD-Fuse SMD 1206, 20 A, F, 32 V (DC), 150 A breaking capacity, 0501020.WR
Unit Price (€ / pc.)
0.8211 € *
Available: 0 pcs.
Leadtime: 9 Weeks **
Fuse, 0501020.WR, LITTELFUSE
A 100% lead-free, RoHS compliant and halogen-free fuse is designed specifically to provide over-current protection to circuits that operate under high working ambient temperatures up to 150 °C. The general design ensures excellent temperature stability and performance reliability. The high I²t values ensure high inrush current withstand capability. It's suitable for both leaded and lead-free reflow / wave soldering.
Applications
- Voltage regulator module (VRM) equipment
- Notebook PC
- DC-DC converter
Technical specifications
| Ausführung | SMD-Sicherung | |
| Auslösecharakteristik | F | |
| Ausschaltvermögen | 150 A | |
| Bauform | SMD 1206 | |
| Breite | 1.63 mm | |
| Gehäuse | SMD | |
| Höhe | 0.84 mm | |
| Länge | 3.2 mm | |
| Nennspannung (DC) | 32 V | |
| Nennstrom | 20 A |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85361050 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
