05071.25MXEP | Littelfuse
Microfuses 6.3 x 32 mm, 1.25 A, F, 650 V (DC), 150 A breaking capacity, 05071.25MXEP
Unit Price (€ / pc.)
5.0575 € *
Available: 0 pcs.
Leadtime: 11 Weeks **

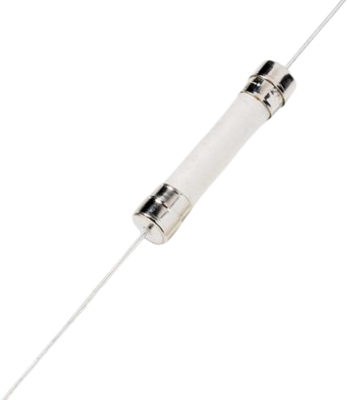

Fuse, 05071.25MXEP, LITTELFUSE
A RoHS compliant and lead-free ceramic-body fuse in a compact 6.3 x 32mm package. It is well suited for overcurrent protection in high-voltage DC circuits requiring compact form factors.
Applications
- High voltage DC power application
- Power inverters
- Variable frequency drives (VFDs)
- Motor drives
- DC-DC converter
- High voltage power supplies
- Power conversion equipment
Technical specifications
| Version | microfuses | |
| Tripping characteristics | F | |
| Breaking capacity | 150 A | |
| Design | 6.3 x 32 mm | |
| diameter | 6.99 mm | |
| Enclosure | ceramic tube | |
| Length | 32.72 mm | |
| Rated voltage (DC) | 650 V | |
| Rated current | 1.25 A |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85361010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
