36913150000 | Littelfuse

Micro fuse, 3.15 A, T, 300 V (AC), 50 A breaking capacity, 36913150000

Order No.: 55P1776
EAN: 4099889095746
MPN:
36913150000
Series: 369
Littelfuse

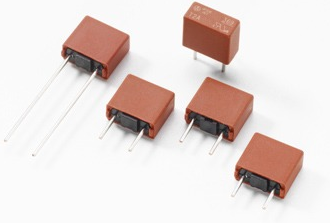

36913150000 Littelfuse Micro Fuses
Image may differ
Unit Price (€ / pc.)
0.3332 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
Total Price:
0.33 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1400 pcs.
0.3332 €

Micro fuse, 36913150000, Littelfuse

The 36913150000 is a time-lag fuse, it is used for surge-withstand and has a ceramic body cartridge that is designed to IEC specifications.

Features

  • Reduced PCB space
  • Direct solderable or plug-in
  • Low internal resistance
  • Shock safe casing
  • Vibration resistant

Applications

  • Electronic ballast
Technical specifications
Version micro fuse
Tripping characteristics T
Breaking capacity 50 A
Design TE5
Width 4 mm
Height 8 mm
Length 8.5 mm
Rated voltage (AC) 300 V
Rated current 3.15 A
Logistics
Country of origin PH
Customs tariff number 85361010
Original Packaging Ammopack with 1,400 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
