38215000430 | Littelfuse
Micro fuse TR5, 5 A, T, 250 V (AC), 100 A breaking capacity, 38215000430
Unit Price (€ / pc.)
1.3447 € *
Available: 23 pcs.
Available in 4 Days: 200 pcs.
Leadtime: 10 Weeks **
Total Price:
1.34 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3447 €
10 pcs.
0.9639 €
100 pcs.
0.8211 €
*incl. VAT plus shipping costs
**Subject to prior sale

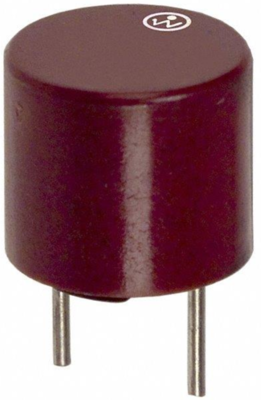

Micro fuse, 38215000430,LITTELFUSE
The 38215000430 is a time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.
Features
- Reduced PCB space requirements
- Shock safe casing
- RoHS-compliant and Halogen-free
- Low internal resistance
Applications
- Battery chargers
- Power supplies
- Consumer electronics
- Industrial controllers
Technical specifications
| Ausführung | Kleinstsicherung | |
| Auslösecharakteristik | T | |
| Ausschaltvermögen | 100 A | |
| Bauform | TR5 | |
| Durchmesser | 8.5 mm | |
| Länge | 8 mm | |
| Nennspannung (AC) | 250 V | |
| Nennstrom | 5 A |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85361010 |
| Originalverpackung | Bulk mit 200 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
