IXFA3N120 | Littelfuse

Littelfuse N channel HiPerFET power MOSFET, 1200 V, 3 A, TO-263, IXFA3N120

Order No.: 74P0980
EAN: 4099891778453
MPN:
IXFA3N120
Series: Standard
Littelfuse
IXFA3N120 Littelfuse MOSFETs

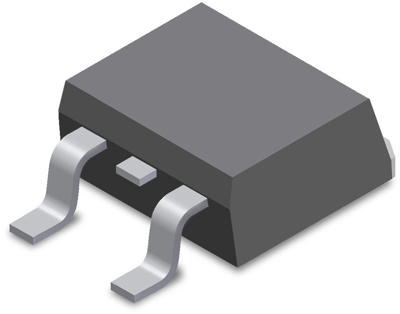

Image may differ
Unit Price (€ / pc.)
7.6041 € *
Available: 0 pcs.
Leadtime: 57 Weeks **
Total Price:
7.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
300 pcs.
7.6041 €

MOSFET, IXFA3N120, Littelfuse

IXFA3N120 offers both hard switching and resonant mode applications, offering low gate charge and excellent ruggedness with a fast intrinsic diode.

Features

  • High current handling capability
  • Avalanche rated
  • Low package inductance
  • Fast intrinsic diode
  • Easy to mount
  • Space saving
  • High power density

Applications

  • DC-DC converters
  • Battery chargers
  • DC choppers
  • AC motor drives
Technical specifications
Version N channel
drain-source on resistance RDS (on) max @VGS=10V 4.5 Ω
Gate Charge Qg @10V (nC) 3.9x10<sup>-8</sup> C
Enclosure TO-263
max. Voltage 1200 V
Max. current 3 A
max. operating temperature 150 °C
min. operating temperature -55 °C
Assembly SMD
Power loss 200 W
Logistics
Country of origin KR
Customs tariff number 85411000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
