IXFK150N30P3 | Littelfuse

Littelfuse N channel HiPerFET power MOSFET, 300 V, 150 A, TO-264, IXFK150N30P3

Order No.: 74P0997
EAN: 4099891778620
MPN:
IXFK150N30P3
Series: Polar3
Littelfuse
IXFK150N30P3 Littelfuse MOSFETs

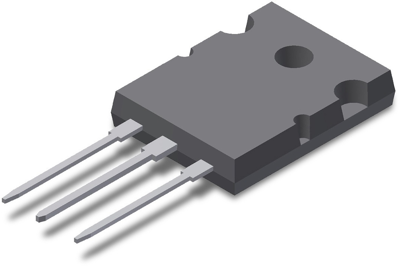

Image may differ
Unit Price (€ / pc.)
19.9087 € *
Available: 0 pcs.
Leadtime: 43 Weeks **
Total Price:
19.91 € *
*incl. VAT plus shipping costs
**Subject to prior sale
300 pcs.
19.9087 €

MOSFET, IXFK150N30P3, LITTELFUSE

A power MOSFET with N-Channel enhancement mode, avalanche rating, and with advantages such as high power density, easy mounting, and space saving.

Features

  • Dynamic dv/dt rating
  • Fast intrinsic diode
  • Low QG
  • Low RDS(on)
  • Low drain-to-tab capacitance
  • Low package inductance

Applications

  • DC-DC converters
  • Battery chargers
  • Switch-mode and resonant-mode power supplies
  • Uninterruptible power supplies (UPS)
  • AC motor drives
  • High speed power switching applications
Technical specifications
Version N channel
drain-source on resistance RDS (on) max @VGS=10V 19 mΩ
Gate Charge Qg @10V (nC) 1.97x10<sup>-7</sup> C
Enclosure TO-264
max. Voltage 300 V
Max. current 150 A
max. operating temperature 150 °C
min. operating temperature -55 °C
Assembly THT
Power loss 1300 W
Logistics
Country of origin PH
Customs tariff number 85411000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
