IXFN320N17T2 | Littelfuse

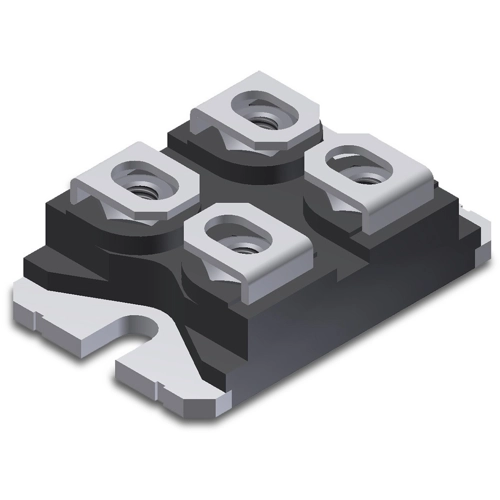

Littelfuse N channel GigaMOS trenchT2 HiperFETT power MOSFET, 170 V, 260 A, SOT-227, IXFN320N17T2

Order No.: 74P1033
EAN: 4099891778989
MPN:
IXFN320N17T2
Littelfuse
IXFN320N17T2 Littelfuse MOSFETs
Image may differ
Unit Price (€ / pc.)
49.1946 € *
Available: 0 pcs.
Leadtime: 45 Weeks **
Total Price:
49.19 € *
*incl. VAT plus shipping costs
**Subject to prior sale
300 pcs.
49.1946 €

MOSFET, IXFN320N17T2, LITTELFUSE

A power MOSFET with N-Channel enhancement mode, avalanche rating, and with advantages such as high power density, easy mounting, and space saving.

Features

  • International standard package
  • miniBLOC with aluminum nitride isolation
  • High current handling capability
  • Fast intrinsic diode
  • Low RDS(on)

Applications

  • Synchronous rectification
  • DC-DC converters
  • Battery chargers
  • Switch-mode and resonant-mode power supplies
  • DC choppers
  • AC motor drives
  • Uninterruptible power supplies (UPS)
  • High speed power switching applications
Technical specifications
Version N channel
drain-source on resistance RDS (on) max @VGS=10V 5.2 mΩ
Gate Charge Qg @10V (nC) 6.4x10<sup>-7</sup> C
Enclosure SOT-227
max. Voltage 170 V
Max. current 260 A
max. operating temperature 175 °C
min. operating temperature -55 °C
Assembly screw mounting
Power loss 1070 W
Logistics
Country of origin KR
Customs tariff number 85412900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
