IXFN32N120P | Littelfuse

Littelfuse N channel HiPerFET power MOSFET, 1200 V, 32 A, SOT-227, IXFN32N120P

Order No.: 74P1036
EAN: 4099891779016
MPN:
IXFN32N120P
Series: Polar
Littelfuse
IXFN32N120P Littelfuse MOSFETs

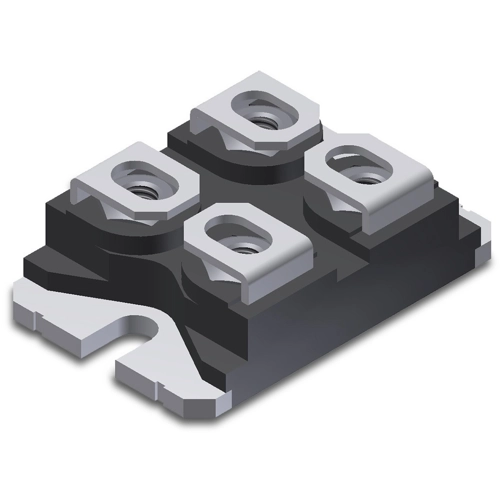

Image may differ
Unit Price (€ / pc.)
79.4325 € *
Available: 0 pcs.
Leadtime: 57 Weeks **
Total Price:
79.43 € *
*incl. VAT plus shipping costs
**Subject to prior sale
300 pcs.
79.4325 €

MOSFET, IXFN32N120P, Littelfuse

IXFN32N120P combines the strengths of the polar standard product with a faster body diode, whose reverse recovery time (trr) is reduced to make it suitable for phase-shift bridges motor control and uninterruptible power supply applications.

Features

  • Dynamic dv/dt rating
  • Easy to mount
  • Space saving

Applications

  • DC-DC converters
  • Battery chargers
  • AC motor drives
  • High speed power switching applications
Technical specifications
Version N channel
drain-source on resistance RDS (on) max @VGS=10V 310 mΩ
Gate Charge Qg @10V (nC) 3.6x10<sup>-7</sup> C
Enclosure SOT-227
max. Voltage 1200 V
Max. current 32 A
max. operating temperature 150 °C
min. operating temperature -55 °C
Assembly screw mounting
Power loss 1000 W
Logistics
Country of origin KR
Customs tariff number 85411000
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
