IXFP22N60P3 | Littelfuse

Name: Littelfuse N channel HiPerFET power MOSFET, 600 V, 22 A, TO-220, IXFP22N60P3
Brand: Littelfuse
SKU: 74P1071
Price: 3.88 EUR
Availability: OutOfStock

Littelfuse N channel HiPerFET power MOSFET, 600 V, 22 A, TO-220, IXFP22N60P3

Order No.: 74P1071

EAN: 4099891779368

MPN:

IXFP22N60P3

Series: PolarP3

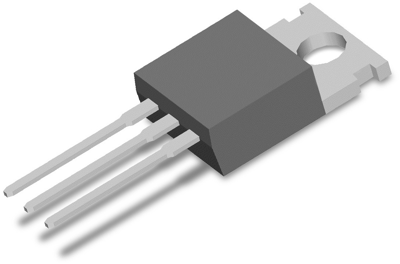

Image may differ

Key Specification:

Ausführung N-Kanal

max. Spannung 600 V

max. Strom 22 A

Einschaltwiderstand RDS (on) max @VGS=10V 390 mΩ

Download Datasheet Technical specifications

Unit Price (€ / pc.)

3.8794 € *

Available: 0 pcs.

Leadtime: 59 Weeks **

Add to Cart

Total Price:

3.88 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

MOSFET, IXFP22N60P3, LITTELFUSE

A power MOSFET with N-Channel enhancement mode, avalanche rating, and with advantages such as high power density, easy mounting, and space saving.

Features

Fast intrinsic rectifier
Low RDS(ON) and QG
Low package inductance

Applications

Switch-mode and resonant-mode power supplies
DC-DC converters
Laser drivers
AC and DC motor drives
Robotics and servo controls

Technical specifications

	Ausführung	N-Kanal
	Einschaltwiderstand RDS (on) max @VGS=10V	390 mΩ
	Gate Charge Qg @10V (nC)	3.8x10<sup>-8</sup> C
	Gehäuse	TO-220
	max. Spannung	600 V
	max. Strom	22 A
	max. Temperatur	150 °C
	min. Temperatur	-55 °C
	Montage	THT
	Verlustleistung W (DC)	500 W
