IXFR64N50P | Littelfuse

Littelfuse N channel HiPerFET power MOSFET, 500 V, 37 A, TO-247I, IXFR64N50P

Order No.: 74P1078
EAN: 4099891779436
MPN:
IXFR64N50P
Series: Polar
Littelfuse
IXFR64N50P Littelfuse MOSFETs

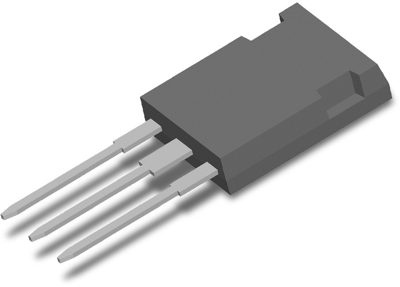

Image may differ
Unit Price (€ / pc.)
15.5652 € *
Available: 0 pcs.
Leadtime: 59 Weeks **
Total Price:
15.57 € *
*incl. VAT plus shipping costs
**Subject to prior sale
300 pcs.
15.5652 €

MOSFET, IXFR64N50P, Littelfuse

IXFR64N50P combines the strengths of the polar standard product with a faster body diode, whose reverse recovery time (trr) is reduced to make it suitable for phase-shift bridges motor control and uninterruptible power supply applications.

Features

  • Dynamic dv/dt rating
  • Easy to mount
  • Space saving

Applications

  • DC-DC converters
  • Battery chargers
  • AC motor drives
  • High speed power switching applications
Technical specifications
Version N channel
drain-source on resistance RDS (on) max @VGS=10V 95 mΩ
Gate Charge Qg @10V (nC) 1.5x10<sup>-7</sup> C
Enclosure TO-247I
max. Voltage 500 V
Max. current 37 A
max. operating temperature 150 °C
min. operating temperature -55 °C
Assembly THT
Power loss 300 W
Logistics
Country of origin PH
Customs tariff number 85412900
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
