IXFR64N50Q3 | Littelfuse

Name: Littelfuse N channel HiPerFET power MOSFET, 500 V, 45 A, TO-247I, IXFR64N50Q3
Brand: Littelfuse
SKU: 74P1079
Price: 29.73 EUR
Availability: OutOfStock

Littelfuse N channel HiPerFET power MOSFET, 500 V, 45 A, TO-247I, IXFR64N50Q3

Order No.: 74P1079

EAN: 4099891779443

MPN:

IXFR64N50Q3

Series: Q3-Class

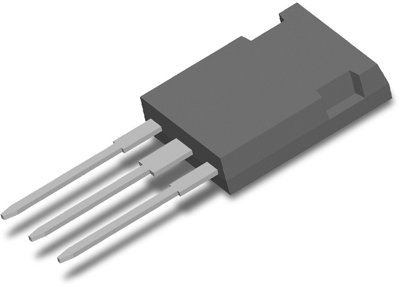

Image may differ

Key Specification:

Ausführung N-Kanal

max. Spannung 500 V

max. Strom 45 A

Einschaltwiderstand RDS (on) max @VGS=10V 94 mΩ

Show 2 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

29.7262 € *

Available: 0 pcs.

Leadtime: 59 Weeks **

Add to Cart

Total Price:

29.73 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

MOSFET, IXFR64N50Q3, LITTELFUSE

A power MOSFET with N-Channel enhancement mode, avalanche rating, and with advantages such as high power density, easy mounting, and space saving.

Features

Silicon chip on direct-copper bond (DCB) substrate
Isolated mounting surface
Low intrinsic gate resistance
Fast intrinsic rectifier
Low package inductance

Applications

DC-DC converters
Battery chargers
Switch-mode and resonant-mode power supplies
DC choppers
Temperature and lighting controls

Technical specifications

	Ausführung	N-Kanal
	Einschaltwiderstand RDS (on) max @VGS=10V	94 mΩ
	Gate Charge Qg @10V (nC)	1.45x10<sup>-7</sup> C
	Gehäuse	TO-247I
	max. Spannung	500 V
	max. Strom	45 A
	max. Temperatur	150 °C
	min. Temperatur	-55 °C
	Montage	THT
	Verlustleistung W (DC)	500 W
