IXTA80N10T | Littelfuse

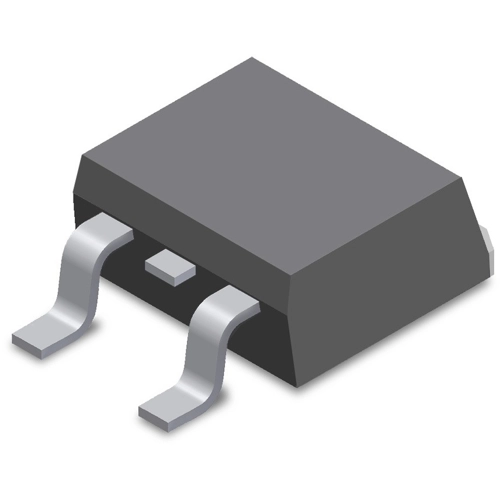

Littelfuse N channel trench power MOSFET, 100 V, 80 A, TO-263, IXTA80N10T
Unit Price (€ / pc.)
2.7489 € *
Available: 0 pcs.
Leadtime: 45 Weeks **
MOSFET, IXTA80N10T, LITTELFUSE
A power MOSFET with N-Channel enhancement mode, avalanche rating, and with advantages such as high power density, easy mounting, and space saving.
Features
- Ultra-low on resistance
- Low package inductance - easy to drive and to protect
- Fast intrinsic diode
Applications
- Automotive
- Motor drives
- 42 V power bus
- ABS systems
- DC-DC converters and off-line UPS
- Primary switch for 24V and 48V systems
- Distributed power architechtures and VRMs
- Electronic valve train systems
- High current switching applications
- High voltage synchronous recifier
Technical specifications
| Version | N channel | |
| drain-source on resistance RDS (on) max @VGS=10V | 14 mΩ | |
| Gate Charge Qg @10V (nC) | 6x10<sup>-8</sup> C | |
| Enclosure | TO-263 | |
| max. Voltage | 100 V | |
| Max. current | 80 A | |
| max. operating temperature | 175 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Power loss | 230 W |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
