IXTH500N04T2 | Littelfuse

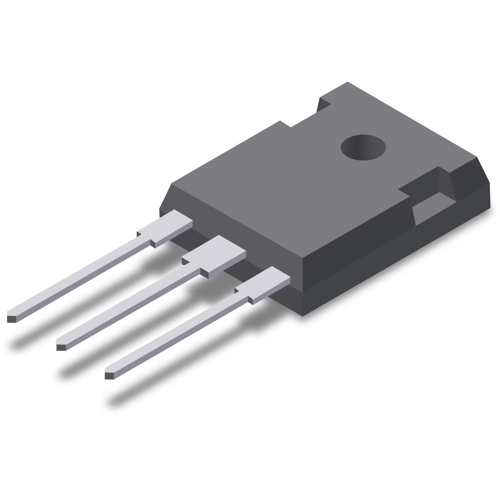

Name: Littelfuse N channel TrenchT2 power MOSFET, 40 V, 500 A, TO-247, IXTH500N04T2
Brand: Littelfuse
SKU: 74P1113
Price: 12.76 EUR
Availability: OutOfStock

Littelfuse N channel TrenchT2 power MOSFET, 40 V, 500 A, TO-247, IXTH500N04T2

Order No.: 74P1113

EAN: 4099891779788

MPN:

IXTH500N04T2

Series: GEN2

Image may differ

Key Specification:

Ausführung N-Kanal

max. Spannung 40 V

max. Strom 500 A

Einschaltwiderstand RDS (on) max @VGS=10V 1.6 mΩ

Download Datasheet Technical specifications

Unit Price (€ / pc.)

12.7568 € *

Available: 0 pcs.

Leadtime: 45 Weeks **

Add to Cart

Total Price:

12.76 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

MOSFET, IXTH500N04T2, LITTELFUSE

A power MOSFET with N-Channel enhancement mode, avalanche rating, and with advantages such as high power density, easy mounting, and space saving.

Features

International standard package
Low RDS(on)
Fast intrinsic rectifier
High current handling capability

Applications

Synchronous buck converters
High current switching power supplies
Battery powered electric motors
Resonant-mode power supplies
Electronics ballast application
Class D audio amplifiers

Technical specifications

	Ausführung	N-Kanal
	Einschaltwiderstand RDS (on) max @VGS=10V	1.6 mΩ
	Gate Charge Qg @10V (nC)	4.05x10<sup>-7</sup> C
	Gehäuse	TO-247
	max. Spannung	40 V
	max. Strom	500 A
	max. Temperatur	175 °C
	min. Temperatur	-55 °C
	Montage	THT
	Verlustleistung W (DC)	1000 W
