MMIX1F180N25T | Littelfuse

Name: Littelfuse N channel GigaMOS trench HiperFETT power MOSFET, 250 V, 132 A, SMPD, MMIX1F180N25T
Brand: Littelfuse
SKU: 74P1128
Price: 42.45 EUR
Availability: OutOfStock

Littelfuse N channel GigaMOS trench HiperFETT power MOSFET, 250 V, 132 A, SMPD, MMIX1F180N25T

Order No.: 74P1128

EAN: 4099891779931

MPN:

MMIX1F180N25T

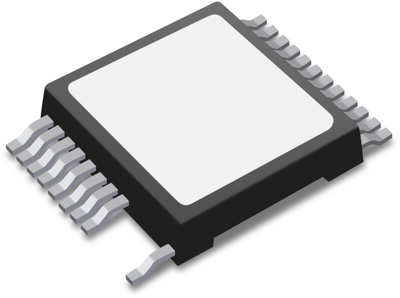

Image may differ

Key Specification:

Ausführung N-Kanal

max. Spannung 250 V

max. Strom 132 A

Einschaltwiderstand RDS (on) max @VGS=10V 13 mΩ

Download Datasheet Technical specifications

Unit Price (€ / pc.)

42.4473 € *

Available: 0 pcs.

Leadtime: 45 Weeks **

Add to Cart

Total Price:

42.45 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

MOSFET, MMIX1F180N25T, LITTELFUSE

A power MOSFET with N-Channel enhancement mode, avalanche rating, and advantages such as high power density, easy mounting and space savings.

Features

Silicon chip on direct-copper-bond substrate
Isolated substrate
Excellent thermal transfer
Increased temperature and power cycling capability
Very high current handling capability
Fast intrinsic diode
Very low RDS(on)

Applications

DC-DC converters and off-line UPS
Primary - side switch
High speed power switching applications

Technical specifications

	Ausführung	N-Kanal
	Einschaltwiderstand RDS (on) max @VGS=10V	13 mΩ
	Gate Charge Qg @10V (nC)	3.64x10<sup>-7</sup> C
	Gehäuse	SMPD
	max. Spannung	250 V
	max. Strom	132 A
	max. Temperatur	150 °C
	min. Temperatur	-55 °C
	Montage	SMD
	Verlustleistung W (DC)	570 W
