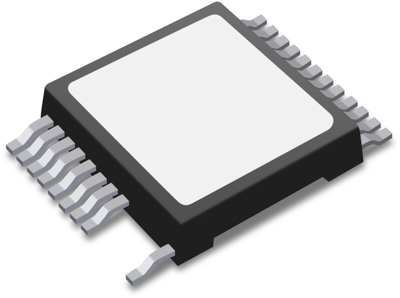

Littelfuse N channel HiPerFET power MOSFET, 300 V, 108 A, SMPD, MMIX1F210N30P3
Unit Price (€ / pc.)
44.9582 € *
Available: 0 pcs.
Leadtime: 43 Weeks **
MOSFET, MMIX1F210N30P3, LITTELFUSE
A power MOSFET with N-Channel enhancement mode, avalanche rating, and advantages such as easy mounting and space savings.
Features
- Silicon chip on direct-copper-bond substrate
- High power dissipation
- Isolated mounting surface
- Low package inductance
- Fast intrinsic rectifier
- Low RDS(on)
Applications
- DC-DC converters
- Battery chargers
- Switch-mode and resonant-mode power supplies
- Uninterruptible power supplies (UPS)
- AC motor drives
- High speed power switching applications
Technical specifications
| Version | N channel | |
| drain-source on resistance RDS (on) max @VGS=10V | 16 mΩ | |
| Gate Charge Qg @10V (nC) | 2.68x10<sup>-7</sup> C | |
| Enclosure | SMPD | |
| max. Voltage | 300 V | |
| Max. current | 108 A | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Power loss | 520 W |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
