59025-1-S-02-A | Littelfuse
Proximity switch, built-in mounting, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, Detection range 8 mm, 59025-1-S-02-A
Unit Price (€ / pc.)
4.9980 € *
Available: 645 pcs.
Leadtime: 13 Weeks **
Total Price:
5.00 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9980 €
10 pcs.
3.5700 €
100 pcs.
3.0464 €
500 pcs.
2.6537 €
*incl. VAT plus shipping costs
**Subject to prior sale

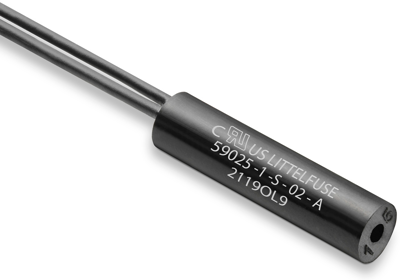

Reed sensor, 59025-1-S-02-A, Littelfuse
The 59025-1-S-02-A is a small cylindrical reed sensor with a choice of normally open, normally closed or change-over contacts. It is capable of switching up to 265 Vac/300 Vdc at 10 VA. It is well suited for use in a wide range of industrial, appliances, or IoT proximity sensing applications. It functions best with the actuator.
Features
- Non-contact switching solution for wet and harsh environments
- No leakage current in ‘open’ state−ideal for batterypowered IoT applications
- Helps implement efficient proximity/access and energy management systems
- Compact size and easy installation and effective concealment in many applications
Applications
- Security and access control
- Factory automation
- Process equipment
- Major appliances
- Small appliances
- Proximity and limit sensing
Technical specifications
| Connection | stranded wires | |
| Version | reed sensor | |
| diameter | 6.22 mm | |
| Detection range | 8 mm | |
| Length | 25.4 mm | |
| Assembly | built-in mounting | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 10 W | |
| Switching Voltage (DC) | 200 V | |
| switching current | 0.5 A | |
| Contact resistance | 200 mΩ |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
