59070-1-V-02-A | Littelfuse
Reed switche, cable assembly, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, 59070-1-V-02-A
Unit Price (€ / pc.)
3.1535 € *
Available: 0 pcs.
Leadtime: 13 Weeks **

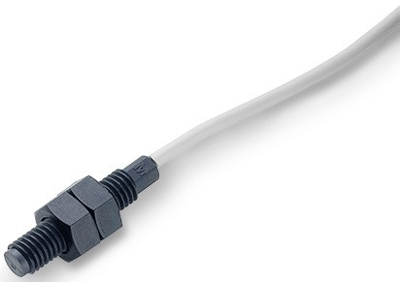

Proximity switch, 59070-1-V-02-A, LITTELFUSE
A small plastic barrel sensor, with normally open contacts, allows for simple installation and adjustment using the supplied retaining nuts. Excellent for switching microcontroller logic level loads. It operates through non-ferrous materials such as wood, plastic or aluminium.
Features
- Two-part magnetically operated proximity sensor
- Threaded barrel with retaining nuts
Applications
- Position and limit sensing
- Security system switch
- Industrial process control
- Linear actuators

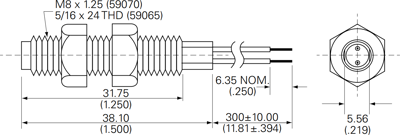

Technical specifications
| Anschluss | Litzen | |
| Erfassungsabstand | 4,0 mm | |
| Länge | 38.1 mm | |
| Montage | Kabelmontage | |
| Produkt-Art | Reedschalter | |
| Schaltfunktion | 1 Schließer | |
| Schaltleistung | 10 W | |
| Schaltspannung (AC) | 140 V | |
| Schaltspannung (DC) | 200 V | |
| Schaltstrom | 0.5 A | |
| Kontaktwiderstand | 200 mΩ |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
