59070-3-T-02-F | Littelfuse
Reed switche, cable assembly, 1 Form C (NO/NC), 5 W, 175 V (DC), 0.25 A, 59070-3-T-02-F
Unit Price (€ / pc.)
5.2479 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Proximity switch, 59070-3-T-02-F, LITTELFUSE

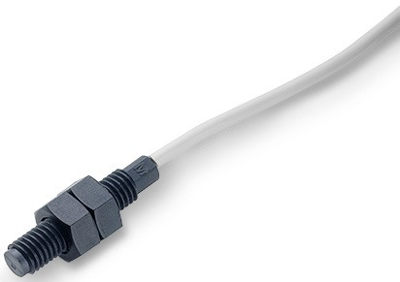

A small plastic barrel sensor, with change over contacts, allows for simple installation and adjustment using the supplied retaining nuts. Excellent for switching microcontroller logic level loads. It operates through non-ferrous materials such as wood, plastic or aluminium.
Features
- Two-part magnetically operated proximity sensor
- Threaded barrel with retaining nuts
Applications
- Position and limit sensing
- Security system switch
- Industrial process control
- Linear actuators
Technical specifications
| Anschluss | Litzen | |
| Erfassungsabstand | 4,9 mm | |
| Länge | 38.1 mm | |
| Montage | Kabelmontage | |
| Produkt-Art | Reedschalter | |
| Schaltfunktion | 1 Wechsler | |
| Schaltleistung | 5 W | |
| Schaltspannung (AC) | 120 V | |
| Schaltspannung (DC) | 175 V | |
| Schaltstrom | 0.25 A | |
| Kontaktwiderstand | 200 mΩ |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
