59070-4-S-02-F | Littelfuse
Proximity switch, cable assembly, 1 Form B (N/C), 5 W, 175 V (DC), 0.25 A, Detection range 6.5 mm, 59070-4-S-02-F
Unit Price (€ / pc.)
4.6172 € *
Available: 0 pcs.
Leadtime: 15 Weeks **

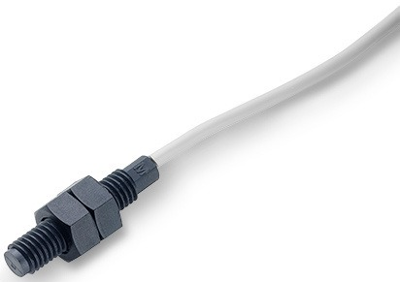

Proximity switch, 59070-4-S-02-F, LITTELFUSE
A small plastic barrel sensor, with normally closed contacts, allows for simple installation and adjustment using the supplied retaining nuts. Excellent for switching microcontroller logic level loads. It operates through non-ferrous materials such as wood, plastic or aluminium.
Features
- Two-part magnetically operated proximity sensor
- Threaded barrel with retaining nuts
Applications
- Position and limit sensing
- Security system switch
- Industrial process control
- Linear actuators
Technical specifications
| Connection | stranded wires | |
| Version | reed switche | |
| Detection range | 6.5 mm | |

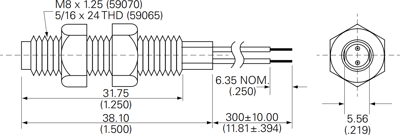

| Length | 38.1 mm | |
| Assembly | cable assembly | |
| Latching switching function | 1 Form B (N/C) | |
| Breaking capacity | 5 W | |
| Switching Voltage (AC) | 120 V | |
| Switching Voltage (DC) | 175 V | |
| switching current | 0.25 A | |
| Contact resistance | 200 mΩ |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
