59140-1-S-03-F | Littelfuse
Reed switche, flange mounting, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, 59140-1-S-03-F
Unit Price (€ / pc.)
2.2134 € *
Available: 0 pcs.
Leadtime: 13 Weeks **

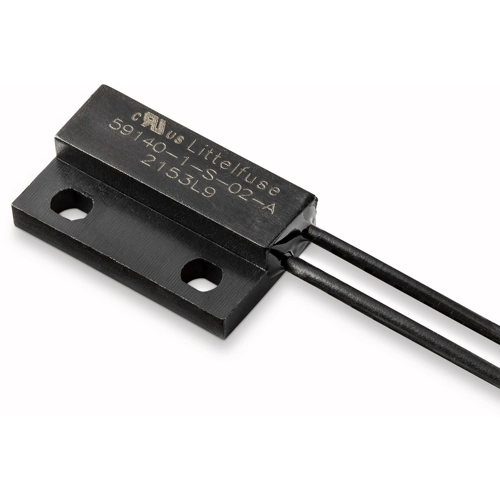

Proximity switch, 59140-1-S-03-F, LITTELFUSE
A miniature flange-mounted reed sensor with normally open contacts. It has a compact size, easy installation and effective concealment in many applications. Helps implement efficient proximity/access and energy management systems. It's well suited for use in a wide range of industrial, appliances, or IoT proximity sensing applications.
Features
- Non-contact switching solution for wet and harsh environments
- Housing design for optimum adjustability
- No leakage current in open state-ideal for battery powered IoT applications
- Can operate through non-ferrous materials
Applications
- Security and access control
- Factory automation
- Process equipment
- Major appliances
- Small appliances
- Proximity and limit sensing
Technical specifications
| Anschluss | Litzen | |
| Erfassungsabstand | 6,8 mm | |

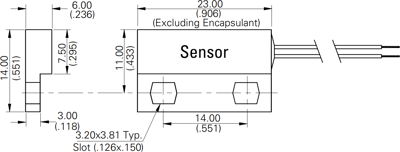

| Länge | 23 mm | |
| Montage | Flanschmontage | |
| Produkt-Art | Reedschalter | |
| Schaltfunktion | 1 Schließer | |
| Schaltleistung | 10 W | |
| Schaltspannung (AC) | 140 V | |
| Schaltspannung (DC) | 200 V | |
| Schaltstrom | 0.5 A | |
| Schutzart (IP) | IP67 | |
| Kontaktwiderstand | 200 mΩ |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85364900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
