FLEX-14-15-20 | Littelfuse

Reed switche, PCB mounting, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, FLEX-14-15-20

Order No.: 75P2358
EAN: 4099891892234
MPN:
FLEX-14-15-20
Littelfuse

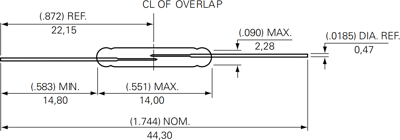

FLEX-14-15-20 Littelfuse Proximity Switches, Reed switches Image 1

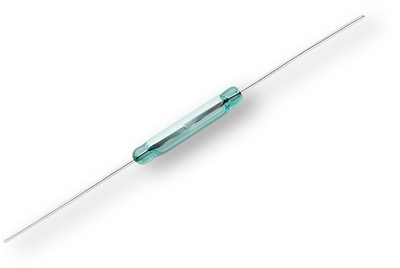

FLEX-14-15-20 Littelfuse Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
0.7854 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
0.79 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
0.7854 €

Reed switch, FLEX-14-15-20, LITTELFUSE

A sub-miniature, normally open reed switch with a 14 mm long x 2.28 mm diameter glass envelope, flexible, easily formed leads, capable of switching 200 VDC at 10 W.  Hermetically sealed switch contacts are not effected by and have no effect on their external environment.

Features

  • Longer leads are flexible for easy forming
  • Soft leads enable reliable hand forming
  • Zero operating power required for contact closure
  • Low EMI and RFI generation
  • Excellent for switching micro-controller logic level loads

Applications

  • Reed relays
  • Security
  • Limit switching
  • Office equipment
  • Industrial control
Technical specifications
Connection axial
Version reed switche
diameter 2.28 mm
Length 44.3 mm
Assembly PCB mounting
Latching switching function 1 Form A (N/O)
Breaking capacity 10 W
Switching Voltage (AC) 140 V
Switching Voltage (DC) 200 V
switching current 0.5 A
Contact resistance 100 mΩ
Logistics
Country of origin PH
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
