MDSR-7-15-20 | Littelfuse

Reed switche, THT, 1 Form A (N/O), 10 W, 200 V (DC), 0.5 A, MDSR-7-15-20

Order No.: 30G2037
EAN: 4099889448269
MPN:
MDSR-7-15-20
Series: MDSR-7
Littelfuse

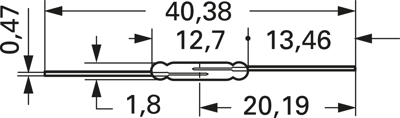

MDSR-7-15-20 Littelfuse Proximity Switches, Reed switches Image 1

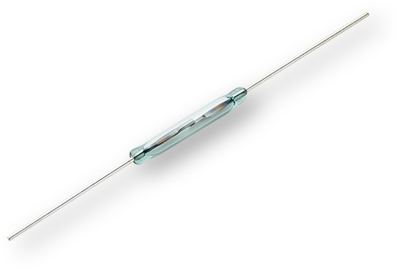

MDSR-7-15-20 Littelfuse Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
0.9282 € *
Available: 0 pcs.
Available in 4 Days: 1,000 pcs.
Leadtime: 10 Weeks **
Total Price:
0.93 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
0.9282 €

Reed switch, MDSR-7-15-20, Littelfuse

The MDSR-7-15-20 is a sub-miniature, normally open switch with a 12.70 mm long x 1.80 mm diameter glass envelope, capable of switching 200 Vdc at 10 W. It has high insulation resistance of 10¹² ohms minimum and low contact resistance of less than 100 milli-ohms.

Features

  • Sub-miniature normally open switch
  • Low, stable contact resistance
  • Zero operating power required for contact closure
  • Excellent for switching microcontroller logic level loads

Applications

  • Reed relays
  • Security systems
  • Limit switching
  • Office equipments
Technical specifications
Connection axial
Version reed switche
diameter 1.8 mm
Length 40.38 mm
Assembly THT
Latching switching function 1 Form A (N/O)
Breaking capacity 10 W
Switching Voltage (AC) 140 V
Switching Voltage (DC) 200 V
switching current 0.5 A
Contact resistance 100 mΩ
Logistics
Country of origin US
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
