MDSR-7-20-25 | Littelfuse

Reed switch, MDSR-7-20-25, Littelfuse

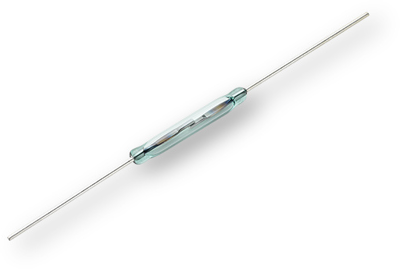

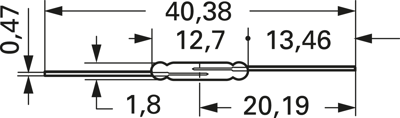

The MDSR-7-20-25 is a sub-miniature, normally open switch with a 12.70 mm long x 1.80 mm diameter glass envelope, capable of switching 200 Vdc at 10 W. It has high insulation resistance of 10¹² ohms minimum and low contact resistance of less than 100 milli-ohms.

Features

• Sub-miniature normally open switch
• Low, stable contact resistance
• Zero operating power required for contact closure
• Excellent for switching microcontroller logic level loads

Applications

• Reed relays
• Security systems
• Limit switching
• Office equipments
