MITI-7-15-20 | Littelfuse

Reed switche, PCB mounting, 1 Form A (N/O), 10 W, 170 V (DC), 0.25 A, MITI-7-15-20

Order No.: 75P2396
EAN: 4099891892616
MPN:
MITI-7-15-20
Series: MITI-7
Littelfuse

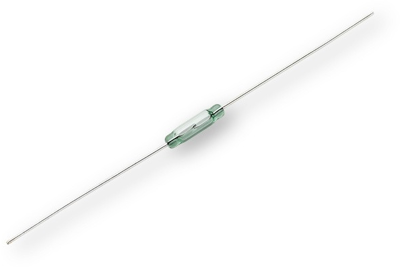

MITI-7-15-20 Littelfuse Proximity Switches, Reed switches Image 1
MITI-7-15-20 Littelfuse Proximity Switches, Reed switches Image 2
Image may differ
Unit Price (€ / pc.)
1.8326 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
1.83 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1000 pcs.
1.8326 €

Reed switch, MITI-7-15-20, LITTELFUSE

The ultra-miniature reed switch is a normally open switch with a glass envelope that is capable of switching 170 VDC at 10 W. It has hermetically sealed switch contacts that are not affected by and have no effect on their external environment. Furthermore, there's zero operating power required for contact closure and is excellent for switching microcontroller logic level loads.

Features

  • Very low space requirement
  • RoHS compliant

Applications

  • Position sensing
  • Security
  • Meter equipment
  • Industrial controls
  • Office equipment
  • Telecoms
Technical specifications
Connection axial
Version reed switche

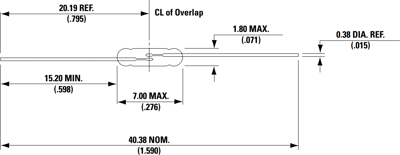

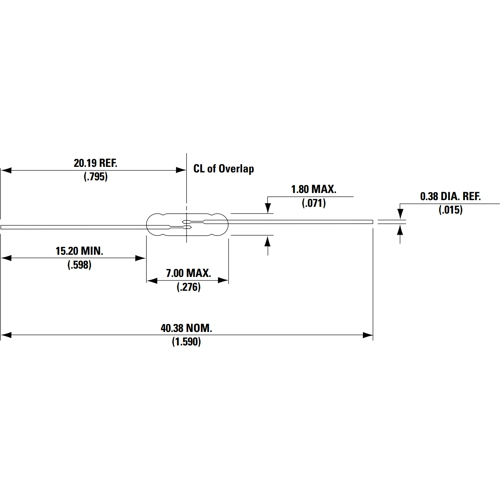

Length 40.38 mm
Assembly PCB mounting
Latching switching function 1 Form A (N/O)
Breaking capacity 10 W
Switching Voltage (AC) 120 V
Switching Voltage (DC) 170 V
switching current 0.25 A
Contact resistance 150 mΩ
Logistics
Country of origin PH
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
