DLA5P800UC-TRL | Littelfuse

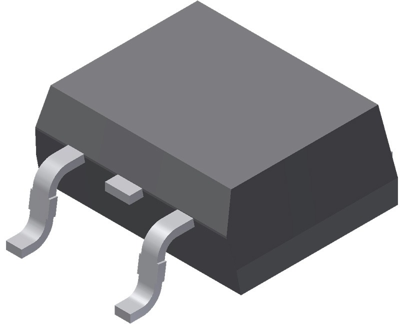

SMD rectifier diode, 5 A, TO-252AA, DLA5P800UC-TRL
Order No.: 74P1224
EAN: 4099891780890
MPN:
DLA5P800UC-TRL
Unit Price (€ / pc.)
1.9635 € *
Available: 0 pcs.
Leadtime: 16 Weeks **
Phase leg, DLA5P800UC-TRL, Littelfuse
Phase leg with very low leakage current and a very low forward voltage drop, used for single and three phase bridge configurations.
Features
- Planar passivated chip
- Improved thermal behavior
- Industry convenient outline
- RoHS compliant
- Epoxy meets UL 94 V-0
Applications
- Diode for main rectification
Technical specifications
| Anzahl der Dioden | 1 | |
| Ausführung | Hocheffiziente Standard-Diode | |
| Durchlassstrom | 5 A | |
| Gehäuse | TO-252AA | |
| Impuls-Verlustleistung | 60 W | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -55 °C | |
| Montage | SMD | |
| Spannung V RRM (Spitzensperrspannung) | 800 V | |
| Sperrschichttemperatur (max.) | 175 °C | |
| Sperrschichttemperatur (min.) | -55 °C |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
