DSI30-12A | Littelfuse

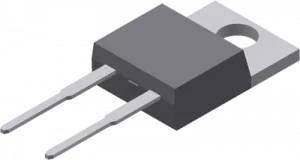

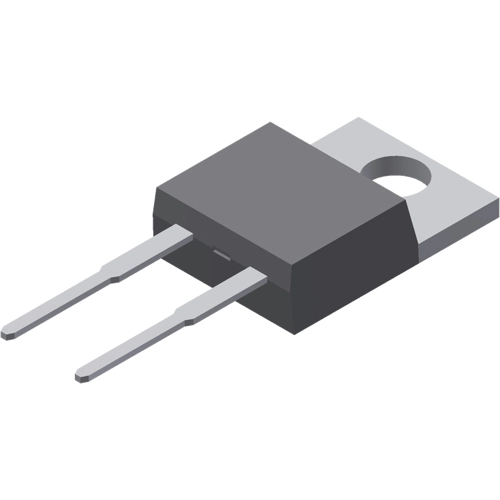

Rectifier diode, 30 A, TO-220AC, DSI30-12A
Order No.: 74P3023
EAN: 4099891798888
MPN:
DSI30-12A
Unit Price (€ / pc.)
1.7850 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Single diode, DSI30-12A, Littelfuse
The DSI30-12A is a single diode for main rectification, single and three phase bridge configurations.
Features
- Planar passivated chips
- Very low leakage current
- Very low forward voltage drop
- Improved thermal behaviour
Technical specifications
| Anzahl der Dioden | 1 | |
| Ausführung | Standard Erholungs-Diode | |
| Durchlassstrom | 30 A | |
| Gehäuse | TO-220AC | |
| Impuls-Verlustleistung | 160 W | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -40 °C | |
| Montage | THT | |
| Spannung V RRM (Spitzensperrspannung) | 1200 V | |
| Sperrschichttemperatur (max.) | 175 °C | |
| Sperrschichttemperatur (min.) | -40 °C |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
