DSP25-12AT-TUB | Littelfuse

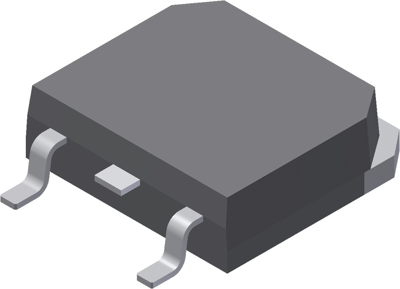

Rectifier diode, 25 A, TO-268AA, DSP25-12AT-TUB
Order No.: 74P3036
EAN: 4099891799014
MPN:
DSP25-12AT-TUB
Unit Price (€ / pc.)
6.1523 € *
Available: 0 pcs.
Leadtime: 42 Weeks **
Phase leg, DSP25-12AT-TUB, Littelfuse
The DSP25-12AT-TUB is a phase leg diode for main rectification, single and three phase bridge configurations.
Features
- Planar passivated chips
- Very low leakage current
- Very low forward voltage drop
- Improved thermal behaviour
Technical specifications
| Ausführung | Standard Erholungs-Diode | |
| Durchlassstrom | 25 A | |
| Gehäuse | TO-268AA | |
| Impuls-Verlustleistung | 160 W | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -40 °C | |
| Montage | SMD | |
| Spannung V RRM (Spitzensperrspannung) | 1200 V | |
| Sperrschichttemperatur (max.) | 175 °C | |
| Sperrschichttemperatur (min.) | -40 °C |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
