DSP8-08S-TRL | Littelfuse

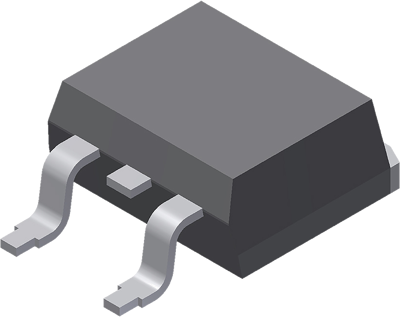

Rectifier diode, 8 A, TO-263AB, DSP8-08S-TRL
Order No.: 74P3051
EAN: 4099891799168
MPN:
DSP8-08S-TRL
Unit Price (€ / pc.)
2.7965 € *
Available: 0 pcs.
Leadtime: 15 Weeks **
Single diode, DSP8-08S-TRL, Littelfuse
The DSP8-08S-TRL is a single diode for main rectification, single and three phase bridge configurations.
Features
- Planar passivated chips
- Very low leakage current
- Very low forward voltage drop
- Improved thermal behaviour
Technical specifications
| Anzahl der Dioden | 2 | |
| Ausführung | Standard Erholungs-Diode | |
| Durchlassstrom | 8 A | |
| Gehäuse | TO-263AB | |
| Impuls-Verlustleistung | 100 W | |
| max. Temperatur | 150 °C | |
| min. Temperatur | -55 °C | |
| Montage | SMD | |
| Spannung V RRM (Spitzensperrspannung) | 800 V | |
| Sperrschichttemperatur (max.) | 175 °C | |
| Sperrschichttemperatur (min.) | -55 °C |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
