MDD312-12N1 | Littelfuse

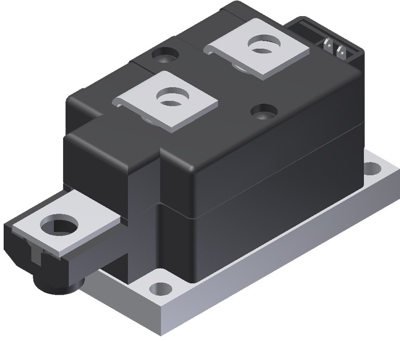

Rectifier module, TO-240AA, MDD312-12N1
Order No.: 74P1563
EAN: 4099891784287
MPN:
MDD312-12N1
Unit Price (€ / pc.)
148.6072 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
Diode, MDD312-12N1, LITTELFUSE
A phase leg with an isolation voltage of 4800 V, advanced power cycling, very low forward voltage drop, very low leakage current, and copper base plate with internally DCB isolation.
Features
- Package with DCB ceramic
- Improved temperature and power cycling
- Planar passivated chip
- Industry standard outline
- RoHS compliant
Applications
- Diode for main rectification
- For single and three phase bridge configurations
- Supplies for DC power equipment
- Input rectifiers for PWM inverter
- Battery DC power supplies
- Field supply for DC motors
Technical specifications
| Anzahl der Dioden | 2 | |
| Ausführung | Gleichrichtermodul | |
| Gehäuse | TO-240AA | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -40 °C | |
| Sperrspannung | 1200 V |
Download
Logistics
| Ursprungsland | PH |
| Zolltarifnummer | 85411000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
