MDD56-18N1B | Littelfuse

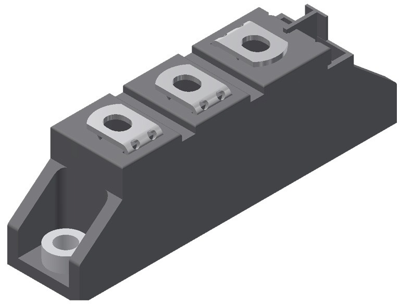

Rectifier module, E2, MDD56-18N1B
Order No.: 74P1577
EAN: 4099891784423
MPN:
MDD56-18N1B
Unit Price (€ / pc.)
28.8813 € *
Available: 0 pcs.
Leadtime: 19 Weeks **
Diode, MDD56-18N1B, LITTELFUSE
A phase leg with an isolation voltage of 4800 V, advanced power cycling, very low forward voltage drop, very low leakage current, and DCB ceramic base plate.
Features
- Package with DCB ceramic
- Improved temperature and power cycling
- Planar passivated chip
- Industry standard outline
- RoHS compliant
- Reduced weight
Applications
- Diode for main rectification
- For single and three phase bridge configurations
- Supplies for DC power equipment
- Input rectifiers for PWM inverter
- Battery DC power supplies
- Field supply for DC motors
Technical specifications
| Number of diodes | 2 | |
| Version | rectifier module | |
| Enclosure | E2 | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -40 °C | |
| Rated blocking voltage | 1800 V |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
