MDMA425P1600PTSF | Littelfuse

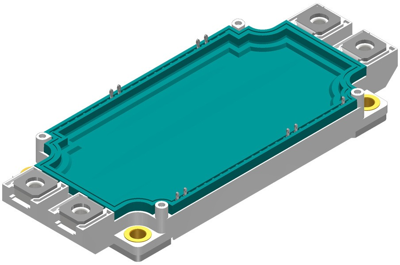

Diode, MDMA425P1600PTSFAH
Order No.: 74P1607
EAN: 4099891784720
MPN:
MDMA425P1600PTSF
Unit Price (€ / pc.)
148.75 € *
Available: 0 pcs.
Leadtime: 54 Weeks **

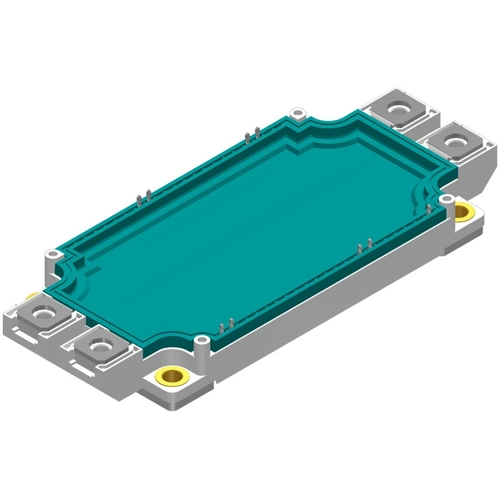

Diode, MDMA425P1600PTSF, LITTELFUSE
A phase leg with an isolation voltage of 4800 V, advanced power cycling, very low forward voltage drop, very low leakage current, and copper base plate with internally DCB isolation.
Features
- Package with DCB ceramic
- Improved temperature and power cycling
- Planar passivated chip
- Industry standard outline
- RoHS compliant
- Pressfit-pins for PCB mounting
- Reduced weight
Applications
- Diode for main rectification
- For single and three phase bridge configurations
- Supplies for DC power equipment
- Input rectifiers for PWM inverter
- Battery DC power supplies
- Field supply for DC motors
Technical specifications
| Version | rectifier module | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -40 °C | |
| Rated blocking voltage | 1600 V |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85411000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
